*In the early days of computing, 1 + 1 didn’t always equal 10*

In the summer of 2016, USDS assigned me to the IRS to work on a project called Online Accounts. When on assignment I tend to wander, because helping out big complex software projects rarely involves simple straight forward advice or solutions. You have to figure that before you showed up the agency has probably been through many rounds of expensive consultants, working groups, maybe even a few research and development centers. If getting things on the right track was a matter of saying “go to the cloud”, someone else would have charged the government at least $350K to hear them say it.

Fortunately, bureaucracies are slow so there is always plenty of time to explore what else is going on around a project and from that garner insight into why the problems directly relevant to your mission have become so intractable … and hopefully learn to solve them.

The IRS has a lot of mainframes. And as millions of Americans recently found out, many of them are quite old. So as I wandered about meeting different types of engineers and chatting about their day-to-day blockers I started to learn much more about how these machines worked. It was a fascinating rabbit hole that exposed me to things like “decimal machines” and “2 out of 5 code”. It revealed something to me that I had not ever considered:

*Computers did not always use binary code.*

Computers did not always use base 2. Computers did not always operate on just an on/off value. There were other things, ** different** things that were tried and eventually abandoned. Some of them predating the advent of electronics itself.

Here’s a little taste of some of those systems

When you’re asking the question “why binary?” it’s useful to consider the humble logic gate. As a basic component of a circuit, logic gates take boolean expressions that should be familiar to all programmers (AND, OR, NOT…) and gives them physical form. A calculation can be thought of as a chain reaction, one logic gate feeding into another logic gate until pulses of voltage represented by 1s and 0s are rearranged into an end state. (For a detailed primer on logic gates check out Brian Jenkins’s post on the basics of logic gates)

But what if there was a third state? 0 for off, 1 for on, 2 for … really really on? This is technically possible but difficult to implement. We often talk about binary being off/on, but in reality “off” and “on” represent a range of acceptable values on either side. Creating a stable and predictable third state is difficult. In the Soviet Union one approach to this problem was to use two vacuum tubes to represent three distinct states (00, 01, 11), but otherwise a wide variety of factors might cause the voltage to creep up or down that off/on range throughout the life of the electronics.

But what if you’re not using voltage? What if you use a medium where the distinction between states are more strictly drawn. Like, for example, if you build your logic gates out of wooden rods.

The ternary calculating machine of Thomas Fowler is one such machine. Build in 1840, six feet wide by three feet deep and one foot high, it did multiplication and division problems with a series of rods set on a raised platform. They could either slide directly into the middle (0 value), overhang on one side (+1) or overhang on the other side (-1). Representing three distinct states the machine could clearly identify and manipulate.

It’s called balanced ternary. So how does it work? If we think about the conventional binary we all know, each bit represents an increment of base 2 and you get the value by adding up all the on bits. (FYI I’m going to reverse the conventional order so that the 2⁰ is the left most throughout this post) For example:

With ternary you do the same thing, except you subtract negative values and add positive ones. Like so:

The first bit is 3⁰ which is 1, 3¹ equals 3, 3² is 3*3 which equals 9. So 11 is 9+3–1. You may notice that ternary can represent this number with fewer bits than binary. You may also notice that with a -1 value on the table, you eliminate the need for a separate sign bit to determine whether a number is positive or negative.

Once you think about including a third state into the mix there are actually a couple of different ways of doing ternary. In addition to {-1,0,1} you could also do {0,1,2} (unbalance ternary) at which point the number 11 would be 2-0-1 (1+1+9). Or you might prefer fractions {0, 1/2, 1}

Addition works basically the same way it does in binary: you have a truth table spelling out which combinations of -1, 0, 1 lead to what output and a carry table. The main advantage is you’re using exponentially fewer bits the higher the numbers go and therefore the process is more efficient and uses less electricity. Subtraction on the other hand just means NOTing one number and doing addition instead, so much nicer than binary. Multiplication and division are easier mainly because you have fewer bits for each number and therefore fewer steps.

Ternary circuits build on these concepts and interesting in their own right. R. X. Seger did a series of technical posts about building ternary logic gates if you’re interested in more detail.

When the Nazis invaded Poland in 1939 they shut down all the universities, including Poland’s version of MIT, Warsaw University of Technology.

Jan Czochralski, whose research on monocrystals made silicon chips possible decades later, convinced the Nazis to let parts of the school reopen under the understanding that they would help the war effort. So by day they worked on maintenance and repair for the German army and by night they manufactured pistols and grenades for the resistance. Czochralski’s team iterated on the weapons used by the Polish Home Army, particularly their explosives. At the same time a different group of professors analyzed the vulnerabilities of radio and steering devices in German V-2 rockets and delivered that information to the resistance.

Meanwhile much of the university that was not seen as useful to the war effort was still operating underground. Thousands of students took clandestine courses, close to 200 earning engineering degrees during the war years. Twenty PhD candidates wrote and subsequently defended their theses.

After the war, resistance fighters started enrolling in the newly reopened university as students. Jacek Karpiński nearly blew himself up building homemade bombs for the resistance, got shot in the spine during the Warsaw Upraising, then went on to build the world’s first PC (K-202) in 1970 … five years before the MITS Altair 8800. It would take decades for the industry to match its memory capacity and performance.

Leon Łukaszewicz served in the Home Army as a sniper and went on to design several computers that were cutting edge for the time: the ARR, the XYZ, the ZAM-2. He also organized and mentored a team of blind programmers.

Andrew (Andrzej) Targowski survived a German firing squad and crawled out from a pile of dead bodies at the age of seven, then as an adult came up with the concept of the *INFOSTRADA (*a project the Soviets quickly killed) which eventually became Al Gore’s internet.

From within this mix saw the development of the BINEG, a binary negative computer.

In negabinary the base is negative. So instead of 2⁰, 2¹, 2² … it is -2⁰, -2¹, -2². If you’re quick you might have already figured out the strange impact this has on our bits: multiplying a negative by a negative produces a positive. Therefore even other bit in negabinary is positive.

Like ternary, negabinary makes negative numbers easier to handle because you do not need a sign bit. Unlike ternary you end up using more bits in general and even more than you would use in plain ordinary binary. It’s not really a surprise why this one did not catch on.

Incidentally, if you’re interested in early computers from other countries Nick Doiron has compiled a pretty comprehensive list here.

Enough of fiddling with different base options! Let’s talk about machines that used base 2 but interpreted it a completely different way than a modern machine would.

I mentioned at the top of this post that my introduction to the land before binary started with an old mainframe at the IRS and something called “2 out of 5 code”.

Also called constant weight code, m out of n code works the way the name suggests. A word must have exactly *m* bits set to 1 and the rest set to 0. Although this might seem like a strange idea, in the context of super old mainframes and big, unreliable data stores it makes a lot of sense. By requiring an m number of bits to be set to 1 you have built in error checking. The machine would have to accidentally change multiple bits at once in a very specific way in order for data corruption to go unnoticed.

Constant weight code can technically be used on any base numeric system, but 2 out of 5 code was especially popular for decimal machines (base 10). Now you’re probably thinking that if base 3 needed three possible states and that was too difficult, than how did decimal machines get ten possible states out of those same parts?

The answer is they didn’t. Instead the architects of these machines found various ways to encode base 10 with hardware that was binary in nature. Not surprising, this is called binary-coded decimal or BCD. What’s tricky about the combination of binary-coded decimal and 2 out of 5 code is that you can’t actually represent all numbers from 0–9 in binary with only two bits on. The number 0 in traditional binary has no bits on, for example. The number 7 is 2⁰+2¹+2² (or 1+2+4), that’s three bits on. So to make it work you have to fiddle with what each bit represents (their *weight*). Because there are different ways of doing that, there are different flavors of 2 out of 5 code. Some of them assign the values 0, 1, 2, 3, 6 to the five bits, which can produce the numbers 1–9 very sensibly with two bits and only needs something weird for 0: 01100.

Other variations of 2 out of 5 code are more familiar because they are used in bar codes. POSTNET (the old barcode system the Post Office used to route mail up until a few years ago) uses the sequence 0, 1 , 2, 4, 7. This offers a more elegant solution to the problem of representing 0 with two bits: 00011 (4+7) would add up to 11 otherwise.

If you’re up for exploring more hijinx caused by binary coded decimal, Daniel Treccia has a great post on Y2k, Bitcoin hashes and BCD -vs- HEX.

1953 was the beginning of mass produced computers with the launch of IBM’s 650. It was a bi-quinary decimal based machine, which means its words represented numbers 0–9 like decimal but the bits making up the word were split into two groups.

The first group had two bits, one representing the number 0 and the other representing the number 5.

The second group had five bits representing the numbers 0–4.

The value of a word in bi-quinary is calculated by adding which ever bit is on in the first part (0 or 5) to whichever bit is on in the second part. As a result you get 0:0, 0:1, 0:2, 0:3, 0:4, 5:0, 5:1, 5:2, 5:3, 5:4. Like 2 out of 5 code it error checks automatically by requiring two bits to be on for all legal values.

If you don’t care so much about error checking you can ditch the second bit on the bi side of bi-quinary. Remington’s UNIVAC 60 and UNIVAC 120 did just that, and also changed the weights on the other side in such a way that the bi side bit being on meant either +1 or +9 depending on context.

This all seems bananas until you understand what using these machines was like.

First you punched your FORTRAN program on a key punch machine, along with any data and control cards. But since the 650 had no disk, the FORTRAN compiler was not resident. So to compile your program, you fed the FORTRAN compiler deck into the card reader, followed by your FORTRAN source program as data. After some time, the machine would punch the resulting object deck. Then you fed the FORTRAN run-time library object deck and your program’s object deck into the card reader, followed by any data cards for your program. Your program would run and results would be punched onto yet another deck of cards. To see the results, you would feed the result deck into another machine, such as an IBM 407, to have it printed on paper (if the computer itself had no printer, as original 650s did not). Source

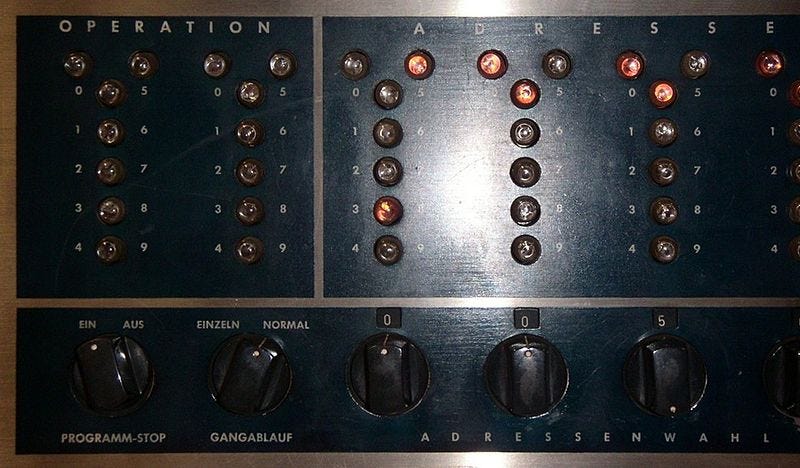

Mainframes of this era did not have displays. Their interfaces consisted of knobs, buttons and lights. Bi-quinary didn’t just provide machine error checking, a user could look at the panel and know exactly what data was in any part of the machine at any one time. Take a look:

So while 2 out of 5 code and bi-quinary can both do error checking, it is easier to look at a bi-quinary number and understand what its meaning is in decimal. The experience ends up being a little more user friendly.
