GAN — What is Generative Adversary Networks GAN?

By Jonathan Hui

Photo by Neven Krcmarek
To create something from nothing is one of the greatest feelings, ... It’s heaven.
By Prince

GAN is about creating, like drawing a portrait or composing a symphony. This is hard compared to other deep learning fields. For instance, it is much easier to identify a Monet painting than painting one. But it brings us closer to understand intelligence. Its importance leads us to thousands of GAN research papers written in recent years. In developing games, we hire many production artists to create animation. Some of the tasks are routine. By applying automation with GAN, we may one day focus ourselves to the creating sides rather than repeating routine tasks daily. This article is part of the GAN series in exploring GAN in details. In this article, we will cover the GAN concept and its algorithm.

What does GAN do?

The main focus for GAN (Generative Adversarial Networks) is to generate data from scratch, mostly images but other domains including music have been done. But the scope of application is far bigger than this. Just like the example below, it generates a zebra from a horse. In reinforcement learning, it helps a robot to learn much faster. On the dark side, we can apply GAN to create fake videos for the celebrity.

Right side image created by CycleGAN Source

GAN composes of two deep networks, the generator, and the discriminator. We will first look into how a generator creates images before learning how to train it.

First, we sample some noise z using a normal or uniform distribution. With z as an input, we use a generator G to create an image x (x=G(z)). Yes, it sounds magical and we will explain it one-step at a time.

Conceptually, z represents the latent features of the images generated, for example, the color and the shape. In Deep learning classification, we don’t control the features the model is learning. Similarly, in GAN, we don’t control the semantic meaning of z. We let the training process to learn it.

To discover the meaning of z, the most effective way is to plot the generated images and examine ourselves. The following images are generated by progressive GAN using random noise z!

Progressive growing of GANs

We can change one particular dimension in z gradually and visualize its semantic meaning.

Images produced in CoGAN

So what is this magic generator G? The following is the DCGAN which is one of the most popular designs for the generator network. It performs multiple transposed convolutions to upsample z to generate the image x. We can view it as the deep learning classifier in the reverse direction.

A generator in DCGAN. Source

But a generator alone will just create random noise. Conceptually, the discriminator in GAN provides guidance to the generator on what images to create. Let’s consider a GAN’s application, CycleGAN, that uses a generator to convert real scenery into a Monet style painting.

Modified form CycleGAN

GAN builds a discriminator to learn what contributes as real images, and it provides feedback to the generator to create paintings that look like the real Monet paintings.

So how is it done technically? The discriminator looks at real images (training samples) and generated images separately. It distinguishes whether the input image to the discriminator is real or generated. The output D(X) is the probability that the input x is real, i.e. P(class of input = real image).

We train the discriminator just like a deep network classifier. If the input is real, we want D(x)=1. If it is generated, it should be zero. Through this process, the discriminator identifies features that contribute to real images.

On the other hand, we want the generator to create images with D(x) = 1. So we can train the generator by backpropagation this target value all the way back to the generator, i.e. we train the generator to create images that towards what the discriminator thinks it is real.

We train both networks in alternating steps and lock them into a fierce competition to improve themselves. Eventually, the discriminator identifies the tiny difference between the real and the generated, and the generator creates images that the discriminator cannot tell the difference. The GAN model eventually converges and produces natural look images.

This discriminator concept can be applied to many existing deep learning applications also. The discriminator in GAN acts as a critic. We can plug the discriminator into existing deep learning solutions to provide feedback to make it better.

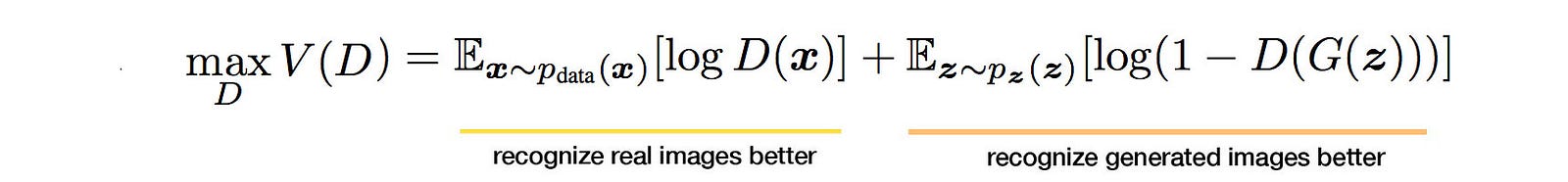

Now, we will go through some simple equations. The discriminator outputs a value D(x) indicating the chance that x is a real image. Our objective is to maximize the chance to recognize real images as real and generated images as fake. i.e. the maximum likelihood of the observed data. To measure the loss, we use cross-entropy as in most Deep Learning: p log(q). For real image, p (the true label for real images) equals to 1. For generated images, we reverse the label (i.e. one minus label). So the objective becomes:

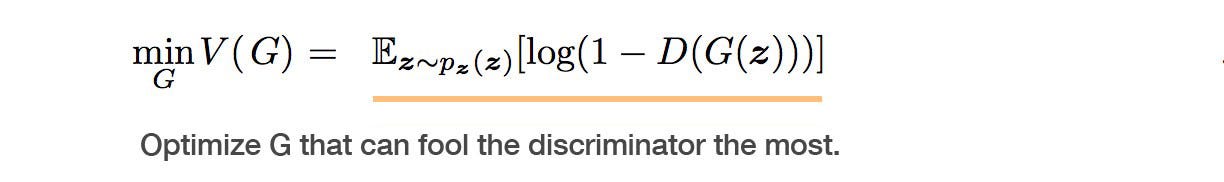

On the generator side, its objective function wants the model to generate images with the highest possible value of D(x) to fool the discriminator.

We often define GAN as a minimax game which G wants to minimize V while D wants to maximize it.

Once both objective functions are defined, they are learned jointly by the alternating gradient descent. We fix the generator model’s parameters and perform a single iteration of gradient descent on the discriminator using the real and the generated images. Then we switch sides. Fix the discriminator and train the generator for another single iteration. We train both networks in alternating steps until the generator produces good quality images. The following summarizes the data flow and the gradients used for the backpropagation.

The pseudo code below puts everything together and shows how GAN is trained.

Usually with k=1 Source

Generator diminished gradient

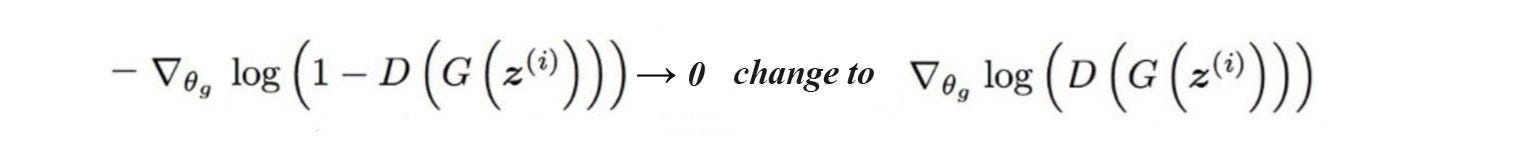

However, we encounter a gradient diminishing problem for the generator. The discriminator usually wins early against the generator. It is always easier to distinguish the generated images from real images in early training. That makes V approaches 0. i.e. - log(1 -D(G(z))) 0. The gradient for the generator will also vanish which makes the gradient descent optimization very slow. To improve that, the GAN provides an alternative function to backpropagate the gradient to the generator.

Yes, that is the basic concept that leads to thousand research papers. As always, simplicity works. Here, we cover the concept. But the potentials are far bigger than what we described. To know why it becomes so popular, let’s see some of the potential applications:
