Recently, the Kubernetes community announced it is deprecating Docker as a container runtime after v1.20.

Is Docker truly out of the game?

Don't Panic: Kubernetes and Docker

What does dockershim deprecation mean for KubeSphere users?

Dockershim was a temporary solution proposed by the Kubernetes community to add support for Docker so that it could serve as its container runtime. Dockershim deprecation only means the code maintenance of Dockershim in the code repository of Kubernetes will stop. This is because Dockershim has become a heavy burden on the Kubernetes maintainers. After this change, the Kubernetes community will be able to maintain the Kubernetes Container Runtime Interface (CRI) only. In fact, all CRI-compliant runtimes can be the runtime for Kubernetes, such as CRI-O and containerd.

Currently, Strictly speaking, what’s actually happening is that dockershim is being removed from Kubelet. In other words, Docker will not be used as the default container runtime. However, you may still integrate Docker into your environment. For more information, you can take a look at the official announcement of Kubernetes:

the KubeSphere container platform is using Docker as the container runtime of Kubernetes. Meanwhile, it also supports any CRI-compliant implementations. For KubeSphere and Docker users, dockershim deprecation does not affect the existing KubeSphere system and will not take any toll on your cluster or on your business. KubeSphere users can continue to use Docker which has already been tested at scale.

In future releases, other KubeSphere components, such as DevOps, will support these container runtimes and you will be able to use these CRI implementations.

The next game-changers: containerd, CRI-O, and iSula


containerd, a Cloud Native Computing Foundation graduated project, is an industry-standard container runtime with an emphasis on simplicity, robustness and portability. It manages the complete container lifecycle of its host system.


CRI-O, an open-source project started by Red Hat, is an implementation of the Kubernetes CRI to enable using OCI (Open Container Initiative) compatible runtimes. It allows Kubernetes to use any OCI-compliant runtime as the container runtime for running Pods.


iSula is an open-source container solution with unified architecture design to meet different requirements in CT and IT fields. Lightweight containers are implemented using C/C++. They are smart, fast, and not restricted by hardware and architecture. With less noise floor overhead, the containers can be widely used.

Deploy containerd, CRI-O, and iSula

As KubeSphere supports any implementation of the Kubernetes CRI, you can easily deploy containerd, CRI-O or iSula and integrate one of them into KubeSphere. Note that in a multi-node cluster, the container runtime should be the same on all nodes.


1.Install runc.

curl -OL
mv runc.amd64 /usr/local/bin/runc && chmod +x /usr/local/bin/runc

2. Download the containerd installation package.

curl -OL
tar -zxvf containerd-1.4.3-linux-amd64.tar.gz -C /usr/local
curl -o /etc/systemd/system/containerd.service

3. Configure containerd.

cat > /etc/containerd/config.toml << EOF
[plugins] [plugins."io.containerd.grpc.v1.cri"] sandbox_image = "kubesphere/pause:3.2" [plugins."io.containerd.grpc.v1.cri".registry] [plugins."io.containerd.grpc.v1.cri".registry.mirrors] [plugins."io.containerd.grpc.v1.cri".registry.mirrors.""] endpoint = [""] ## You can input your registry mirror.
systemctl enable containerd && systemctl restart containerd

4. Install crictl.

curl -OL$VERSION/crictl-$VERSION-linux-amd64.tar.gz
sudo tar zxvf crictl-$VERSION-linux-amd64.tar.gz -C /usr/local/bin
rm -f crictl-$VERSION-linux-amd64.tar.gz

5. Configure crictl.

cat > /etc/crictl.yaml << EOF
runtime-endpoint: unix:///run/containerd/containerd.sock
image-endpoint: unix:///run/containerd/containerd.sock
timeout: 2
debug: false
pull-image-on-create: false


1. Download and install CRI-O.

curl -OL
tar -zxf crio-v1.18.4.tar.gz
mkdir -p /etc/crio /opt/cni/bin /usr/local/share/oci-umount/oci-umount.d /usr/local/lib/systemd/system
mkdir -p /etc/crio /opt/cni/bin /usr/local/share/oci-umount/oci-umount.d /usr/local/lib/systemd/system
echo "fs.may_detach_mounts=1" >> /etc/sysctl.conf

2. Configure CRI-O.

Navigate to the following fields and make changes.

pause_image = "kubesphere/pause:3.2"
registries = [ "" ## You can input your registry mirror.

3. Start CRI-O.

systemctl enable crio && systemctl restart crio

iSula (openEuler 20.09)

1. Install iSula on openEuler 20.09.

2. Configure iSula.

vim /etc/isulad/daemon.json

3. Navigate to the following fields and make changes.

"registry-mirrors": [ "" ## You can input your registry mirror. ]
"pod-sandbox-image": "kubesphere/pause:3.2"
"network-plugin": "cni"
"cni-bin-dir": "/opt/cni/bin"
"cni-conf-dir": "/etc/cni/net.d"

4. Start iSula.

systemctl enable isulad && systemctl restart isulad

Deploy Kuberenetes and KubeSphere using KubeKey

We can use the open-source tool KubeKey to quickly deploy both Kubernetes and KubeSphere.

1. Download KubeKey v1.1.0-alpha.1 to create a cluster. This is an alpha version and future releases will also support the integration of different container runtimes.

curl -OL
tar -zxvf kubekey-v1.1.0-alpha.1-linux-amd64.tar.gz

2. Make kk executable.

3. Create a configuration file. For example, run the following command to create the configuration for KubeSphere v3.0.0.

./kk create config --with-kubesphere v3.0.0

4. Edit the configuration file (default file name: config-sample.yaml).

$ vi config-sample.yaml
kind: Cluster
... kubernetes: version: v1.17.9 imageRepo: kubesphere clusterName: cluster.local containerManager: containerd ## Input the container runtime: containerd/crio/isula


For more information about the configuration file and installation, see Multi-node Installation.

5. Create a cluster.

./kk create cluster -f config-sample.yaml

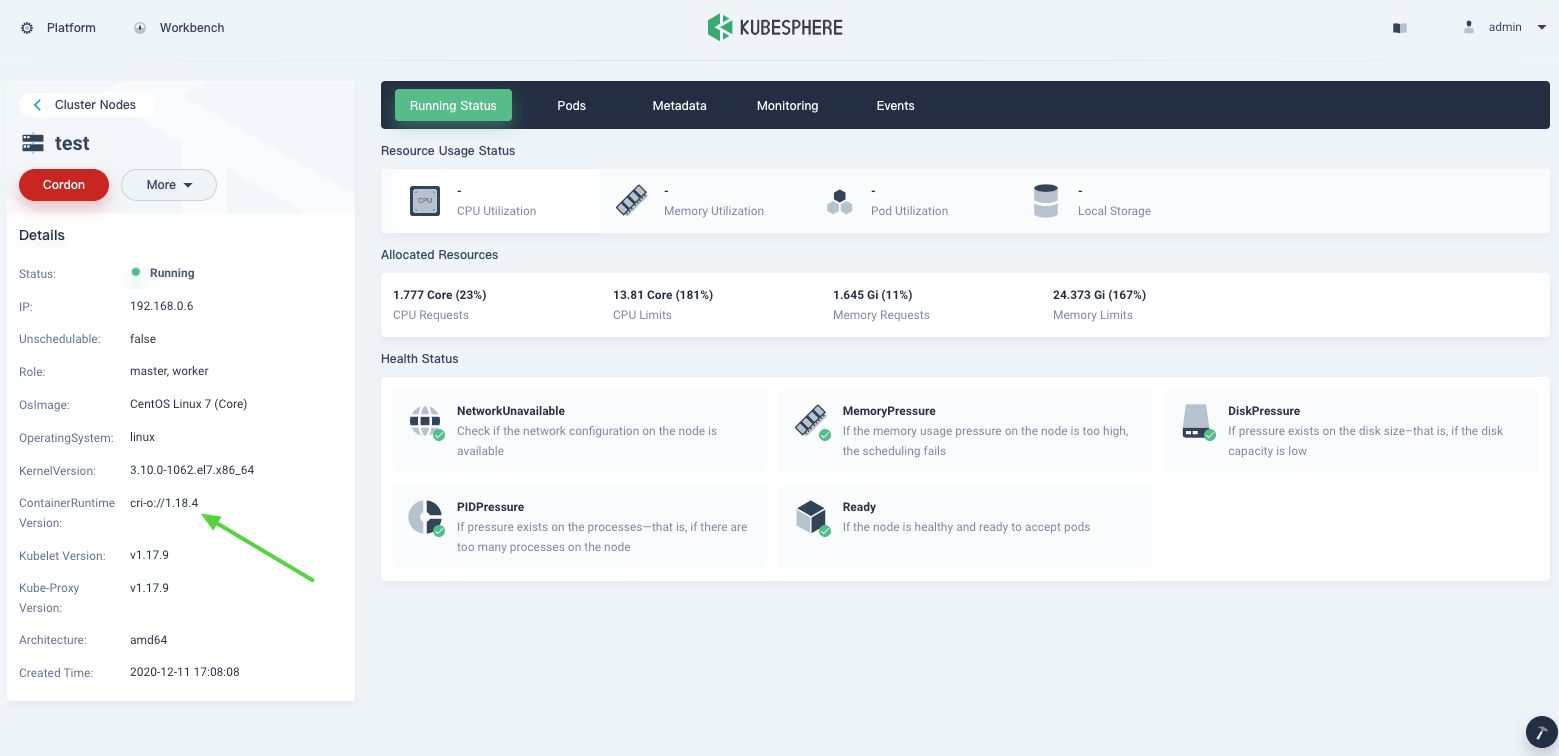

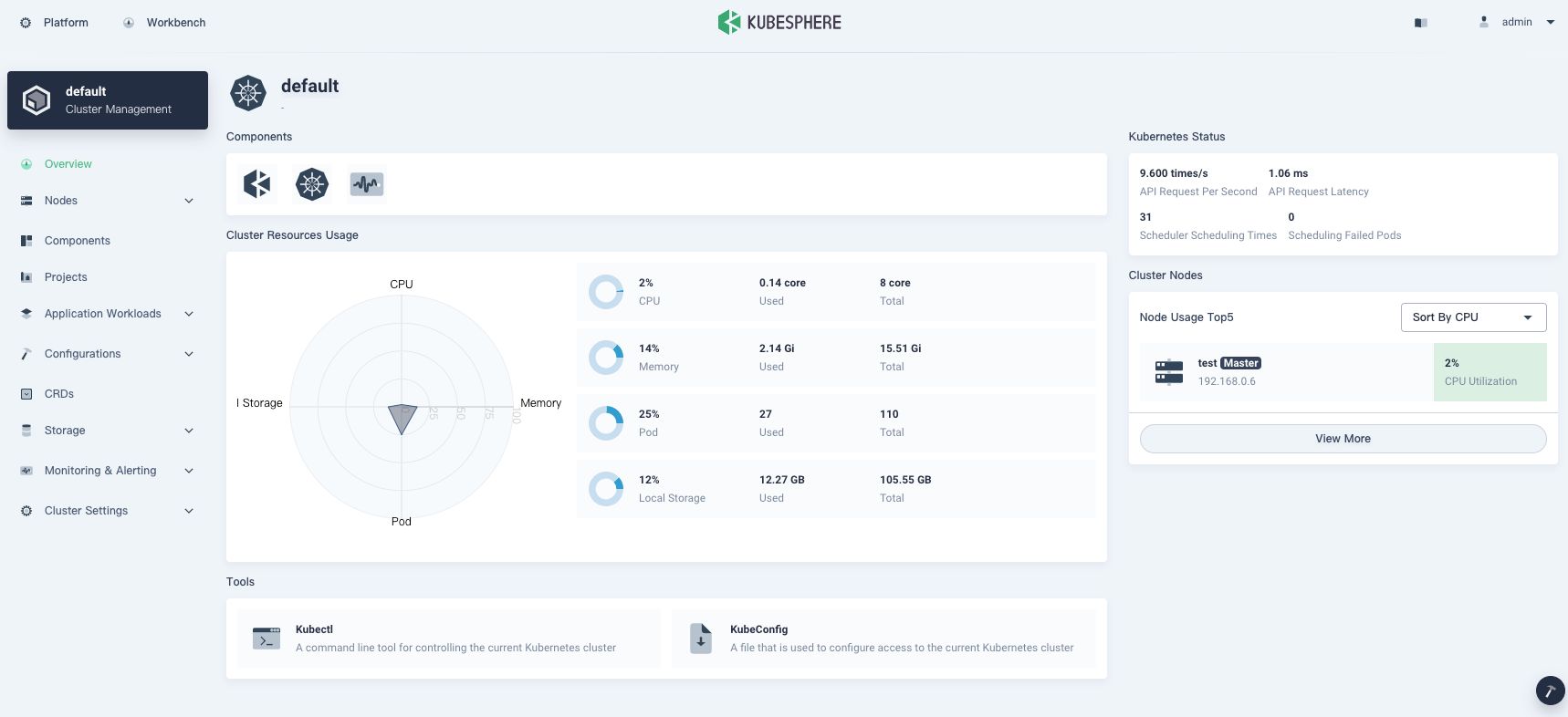

Access the KubeSphere console to verify the runtime

After you deploy the cluster, you can access the web console of KubeSphere. On the Cluster Management page, check the container runtime that your cluster is using.

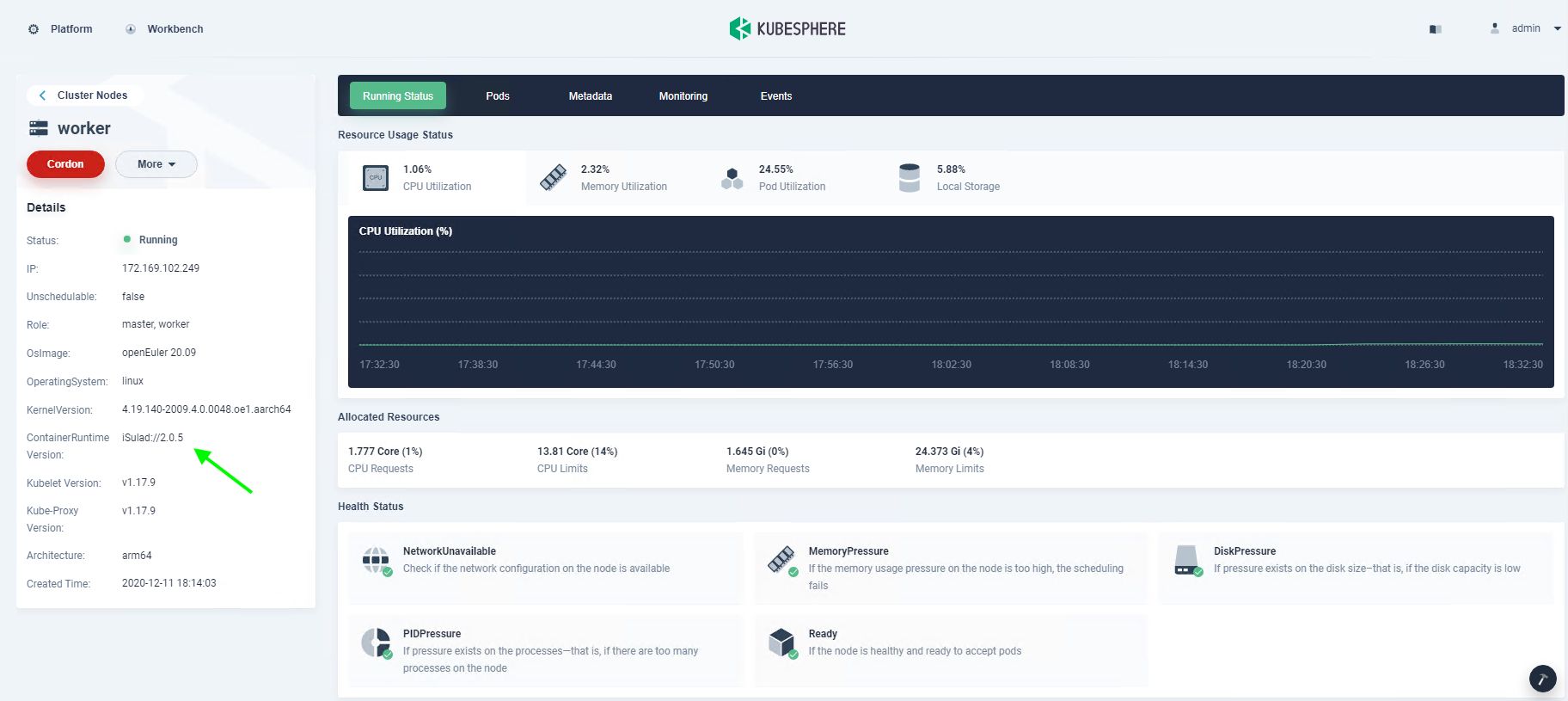

iSula on openEuler 20.09
